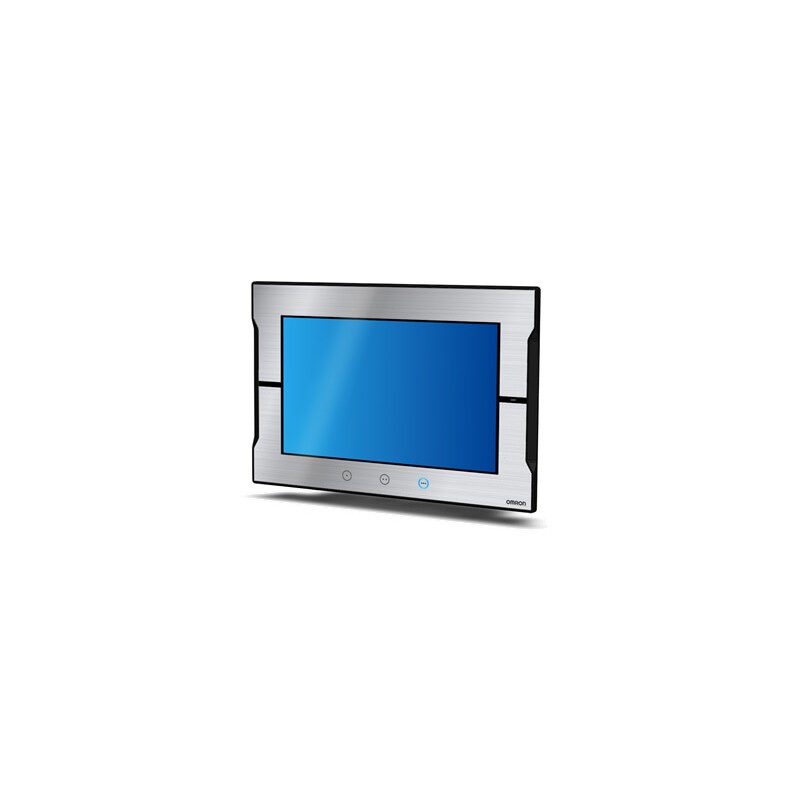

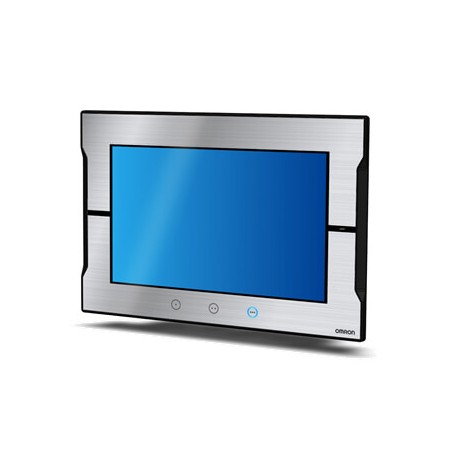

NA5-12W101B 392729 NA579006C OMRON Schnittstelle zu Sysmac NA, 12.1"", 1280x800, TFT 16.7 mill. farben: Schw..

15.4 inch wide screen, TFT LCD

24 bit full color

1280 × 800 pixels

Silver

NA5-15W101S

Black

NA5-15W101B

12.1 inch wide screen, TFT LCD

1280 × 800 pixels

Silver

NA5-12W101S

Black

NA5-12W101B

9 inch wide screen, TFT LCD

800 × 480 pixels

Silver

NA5-9W001S

Black

NA5-9W001B

7 inch wide screen, TFT LCD

800 × 480 pixels

Silver

NA5-7W001S

Black

NA5-7W001B

SD memory card

2 GB

HMC-SD291

4 GB

HMC-SD491

USB memory

2 GB

FZ-MEM2G

8 GB

FZ-MEM8G

Replacement battery

Battery life: 5 years (at 25°C). This Battery is provided as an accessory.

CJ1W-BAT01

Anti-reflection sheets

Attach a Sheet to the screen to protect against diffused reflections and dirt.
The entire Sheet is colorless and transparent. Five Sheets are provided in one set.

For NA5-15W

NA-15WKBA04

For NA5-12W

NA-12WKBA04

For NA5-9W

NA-9WKBA04

For NA5-7W

NA-7WKBA04

High pressure waterproof attachment (UL Type 4X)

Use of the high pressure waterproof attachment (PWA) is required to meet UL Type 4X approval where panel thickness is between 1.6 to 4.5 mm.
Four PWA models are available for each NA screen size.

For NA5-15W

NA-15WATW01

For NA5-12W

NA-12WATW01

For NA5-9W

NA-12WATW01

For NA5-7W

NA-12WATW01

Sysmac Studio version 1.10 or higher

SYSMAC-SE2___

Sysmac Studio HMI Edition 1.10 or higher

SYSMAC-HE001L

Rated supply voltage

24 VDC

Allowable power supply voltage range

19.2 to 28.8 VDC (24 VDC ±20%)

Power consumption

47 W max.

45 W max.

40 W max.

35 W max.

Ambient operating temperature

0 to 50°C12

Ambient storage temperature

−20 to +60°C3

Ambient operating humidity

10 to 90%2

Must be no condensation.

Atmosphere

Must be free from corrosive gases.

Pollution degree

2 or less: JIS B 3502, IEC 61131-2

Noise immunity

2 kV on power supply line (Conforms to IEC 61000-4-4.)

Vibration resistance (during operation)

Conforms to IEC 60068-2-6.

5 to 8.4 Hz with 3.5 mm half amplitude and 8.4 to 150 Hz with 9.8 m/s2for 100 minutes each in X,Y, and Z directions
(Time coefficient of 10 minutes × coefficient factor of 10 = total time of 100 min.)

Shock resistance (during operation)

Conforms to IEC 60028-2-27.

147 m/s2 3 times each in X, Y, and Z directions

Dimensions (W×H×D)

420 × 291 × 69 mm

340 × 244 × 69 mm

290 × 190 × 69 mm

236 × 165 × 69 mm

Panel cutout dimensions

392 × 268 mm
(horizontal × vertical)

Panel thickness: 1.6 to 6.0 mm

310 × 221 mm
(horizontal × vertical)

Panel thickness: 1.6 to 6.0 mm

261 × 166 mm
(horizontal × vertical)

Panel thickness: 1.6 to 6.0 mm

197 × 141 mm
(horizontal × vertical)

Panel thickness: 1.6 to 6.0 mm

Weight

3.2 kg max.

2.3 kg max.

1.7 kg max.

1.3 kg max.

Degree of protection

Front-panel controls: IP65 oil-proof type, UL type 4X (using a high pressure waterproof attachment (PWA))

Battery life

Battery life: 5 years at 25°C

The RTC will be backed up for 5 days after the battery runs low. The RTC will be backed up by a super capacitor for 5 minutes after removing the old battery. (This assumes that the power is first turned ON for at least 5 minutes and then turned OFF.)

International standards

UL 508/CSA standard C22.2 No.1424
EMC Directive (2004/108/EC) EN 61131-2:2007
Shipbuilding standards LR, DNV, and NK
IP65 oil-proof, UL type 4X (front panel only and using a high pressure waterproof attachment (PWA))
ANSI 12.12.01 Class 1 Division 2/CSA standard C22.2
RoHS Directive (2002/95/EC)
KC Standards KN 61000-6-2:2012-06 for EMS and KN 61000-6-4:2012-06 for EMI
RCM
