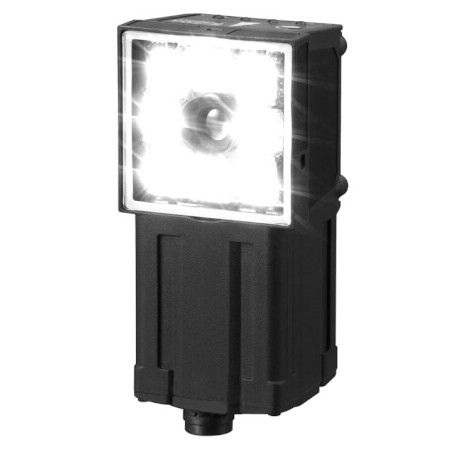

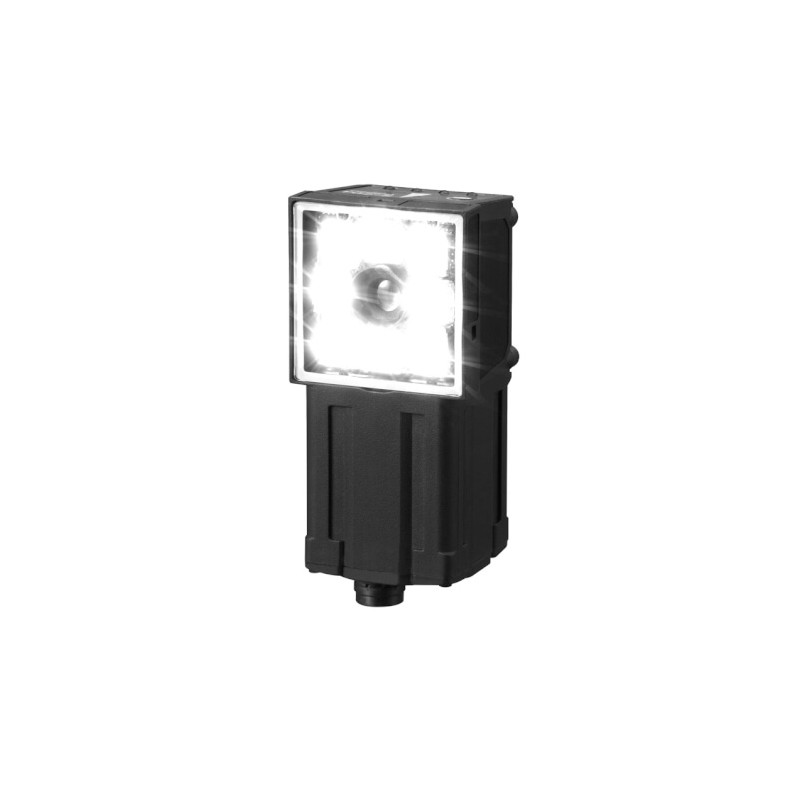

FQ-CR25010F-M
FQ 5102M
FQCR25010FM
OMRON
1
Verfügbar Schiff am heute
CF Lesen 2D-code FOV:7,5x4,7-13x8,2 Dist:38-60 PNP
FQ Lesecode 2D FOV:7,5x4,7-13x8.2 Dist:38-60 PNP
Vision Systems > FQ
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Refer to Ordering information(Tolerance (field of vision): ±10% max.) | ||
Filter function (Smooth, Dilate, Erosion, Median), Code Error Correction Position Display | ||
In Sensor: 1,000 items (If a Touch Finder is used, results can be saved up to the capacity of an SD card.) | ||
In Sensor: 20 images (If a Touch Finder is used, images can be saved up to the capacity of an SD card.) | ||
Math (arithmetic, calculation functions, trigonometric functions, and logic functions) | ||
Note: The three output signals can be allocated for the judgements of individual inspection items. | ||
150 m/s² 3 times each in 6 direction (up, down, right, left, forward, and backward) | ||
IEC 60529 IP67 (Except when Polarizing Filter Attachment is mounted or connector cap is removed.) | ||
Sensor: PBT, PC, SUS, Mounting Bracket: PBT, Polarizing Filter Attachment: PBT, PC Ethernet connector: Oil-resistance vinyl compound, I/O connector: Lead-free heat-resistant PVC | ||
Narrow View/Standard View: Approx.160 g Wide View: Approx. 150 g | ||
Mounting Bracket (FQ-XL)(1), Polarizing Filter Attachment (FQ-XF1) (1), Instruction Manual, Quick Startup Guide, Member Registration Sheet, Warning Label | ||
Class 2(Applicable standards: IEC 60825-1:1993 +A1:1997 +A2:2001,EN 60825-1:1994 +A1:2002 +A2:2001, and JIS C 6802:2005) | ||
Number of sensors that can be recognized (switched): 32 max. number or sensor that can displayed on monitor: 8 max. | ||||
Last result display, Last NG display, trend monitor, histograms | ||||
English, German, French, Italian, Spanish, Traditional Chinese, Simplified Chinese, Korean, Japanese | ||||
Life expectancy1 | ||||
Life expectancy2 | ||||
DC power connection: 21.6 to 26.4 VDC (including ripple) AC adapter (manufactured by Sino-American Japan Co., Ltd) connection: 100 to 240 VAC, 50/60 Hz | ||||
Continuous operation on Battery3 | ||||
Operating: 0 to 50ºC when mounted to DIN Track Operation on Battery: 0 to 40ºC: −25 to 65ºC | ||||
10 to 150 Hz, single amplitude: 0.35 mm, X/Y/Z directions 8 min each, 10 times | ||||
150 m/s² 3 times each in 6 direction (up, down, right, left, forward, and backward) | ||||
IEC 60529 IP20 (when SD card cover, connector cap, or harness is attached) | ||||
Charged in Touch Finder (FQ2-D31). AC adapter (FQ-AC⬜) is required. | |
Charging time4 | |
Usage time1 | |
Battery backup life5 | |
The following Personal Computer system is required to use the software.
Microsoft Windows XP Home Edition/Professional SP2 or higher (32-bit version) Microsoft Windows 7 Home Premium or higher (32-bit/64-bit version) | |
500 MB min. available space6 | |
