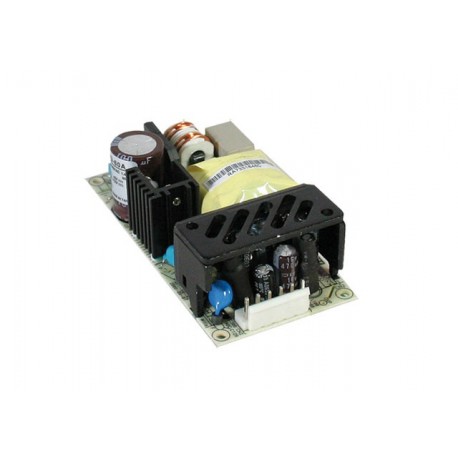

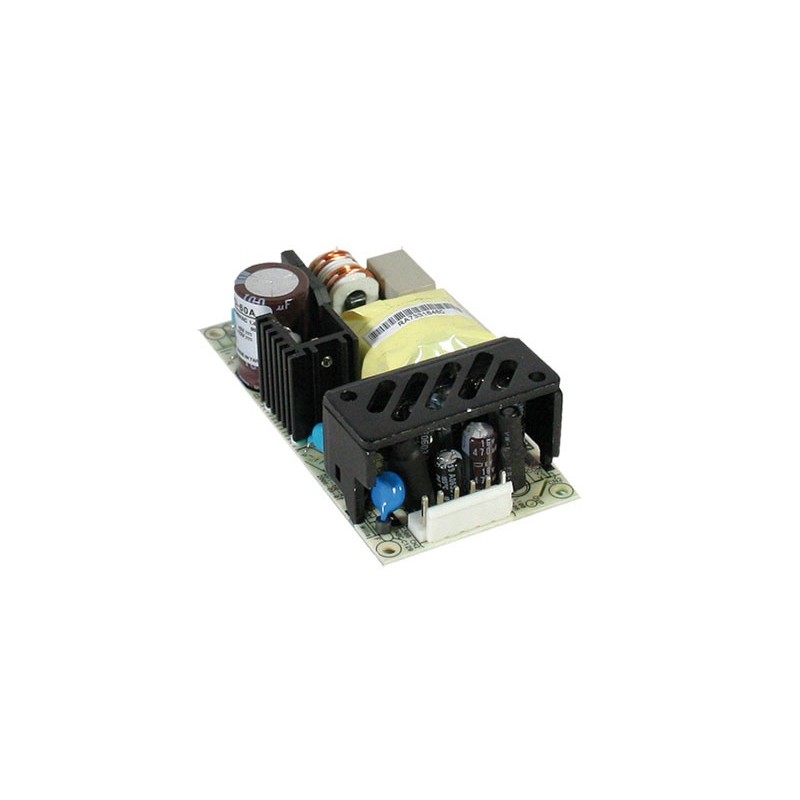

RPD-60B RPD60B MEANWELL Eingang: 90-264 AC / 127-370 DC, Ausgabe: 2, V1: 5, A1: 3, V2: 24, A2: 1 Vergrößern
Die Bilder sind nur orientativ. Bitte prüfen Sie das Artikelstammdatenblatt.

RPD-60B RPD60B MEANWELL Eingang: 90-264 AC / 127-370 DC, Ausgabe: 2, V1: 5, A1: 3, V2: 24, A2: 1

RPD-60B

RPD60B

MEANWELL

Verfügbar

Schiff am heute

Eingang: 90-264 AC / 127-370 DC, Ausgabe: 2, V1: 5, A1: 3, V2: 24, A2: 1

Mehr Infos


Spannungsversorgungen

OPENFRAME MEDICAL

RPD

* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von MEANWELL

MengePreis
1+$24.38
12+$21.82
24+$21.28
35+$21.03
47+$20.86
*Dieser Preis ist pro Einheit und ist der Nettowert (ohne Steuern, falls zutreffend).

Wie es funktioniert

Wie funktioniert das?

1 Fügen Sie die Produkte Ihrer Wahl in den Warenkorb
2 Geben Sie Ihre Kontaktdaten und senden Sie Ihre Anfrage
3 Sie werden per E-Mail mit unseren Preisvorschläge mitzuteilen
4 Beenden Sie einfach Ihre Bestellung und Sie erhalten die Produkte

Es gibt verschiedene Möglichkeiten die Zahlung abzuwickeln
- Kreditkarte
- Banküberweisung
- PayPal


Verwandte Produkte

Mehr Infos



60W Dual Output Medical Type RPD-60series 60W Dual Output Medical Type RPD-60series
60W Dual Output Medical Type RPD-60series Features : Features :
Features : 4"x2"miniature size 4"x2"miniature size
4"x2"miniature size Universal AC input/Fullrange Universal AC input/Fullrange
Universal AC input/Fullrange Low leakagecurrent<100A Low leakagecurrent<100A
Low leakagecurrent<100A Protections: Short circuit / Over load / Over voltage Protections: Short circuit / Over load / Over voltage
Protections: Short circuit / Over load / Over voltage Cooling by free air convection Cooling by free air convection
Cooling by free air convection Medical safety approved (2 x MOPPbetweenprimaryto secondary) Medical safety approved (2 x MOPPbetweenprimaryto secondary)
Medical safety approved (2 x MOPPbetweenprimaryto secondary) UL60950-1/IEC60950-1/EN60950-1 ITE safety approved UL60950-1/IEC60950-1/EN60950-1 ITE safety approved
UL60950-1/IEC60950-1/EN60950-1 ITE safety approved Fixed switch frequency at 100KHz Fixed switch frequency at 100KHz
Fixed switch frequency at 100KHz Suitable for BF application with appropriate systemconsideration Suitable for BF application with appropriate systemconsideration
Suitable for BF application with appropriate systemconsideration 3 years warranty 3 years warranty
3 years warrantySPECIFICATION SPECIFICATION
SPECIFICATION MODEL RPD-60A MODEL RPD-60A
MODEL RPD-60A.. ..
.. RPD-60B RPD-60B
RPD-60B OUTPUT NUMBER DC VOLTAGE RATED CURRENT CURRENT RANGE RATED POWER OUTPUT NUMBER DC VOLTAGE RATED CURRENT CURRENT RANGE RATED POWER
OUTPUT NUMBER DC VOLTAGE RATED CURRENT CURRENT RANGE RATED POWER CH1 CH1
CH1 5V 5V
5V 5A 5A
5A 0.5 ~ 5.5A 0.5 ~ 5.5A
0.5 ~ 5.5A 49W 49W
49W CH2 CH2
CH2 12V 12V
12V 2A 2A
2A 0.1 ~ 2.2A 0.1 ~ 2.2A
0.1 ~ 2.2A CH1 CH1
CH1 5V 5V
5V 3.5A 3.5A
3.5A 0.5 ~ 3.85A 0.5 ~ 3.85A
0.5 ~ 3.85A 53.5W 53.5W
53.5W CH2 CH2
CH2 24V 24V
24V 1.5A 1.5A
1.5A 0.1 ~ 1.65A 0.1 ~ 1.65A
0.1 ~ 1.65AOUTPUT OUTPUT
OUTPUT PEAK LOAD(10sec.) Note.453.9W RIPPLE & NOISE (max.) Note.2 80mVp-p VOLTAGE TOLERANCE Note.3+3,-2% PEAK LOAD(10sec.) Note.453.9W RIPPLE & NOISE (max.) Note.2 80mVp-p VOLTAGE TOLERANCE Note.3+3,-2%
PEAK LOAD(10sec.) Note.453.9W RIPPLE & NOISE (max.) Note.2 80mVp-p VOLTAGE TOLERANCE Note.3+3,-2%80mVp-p 80mVp-p
80mVp-p 6.0% 6.0%
6.0% 58.85W 58.85W
58.85W 80mVp-p 80mVp-p
80mVp-p +3,-2% +3,-2%
+3,-2%100mVp-p 100mVp-p
100mVp-p +8,-4% +8,-4%
+8,-4% LINE REGULATION LOAD REGULATION LINE REGULATION LOAD REGULATION
LINE REGULATION LOAD REGULATION 0.5% 0.5%
0.5% 1.5% 1.5%
1.5% 1.0% 1.0%
1.0% 2.0% 2.0%
2.0% 0.5% 0.5%
0.5% 1.5% 1.5%
1.5% 1.0% 1.0%
1.0% 2.0% 2.0%
2.0%INPUT INPUT
INPUT SETUP, RISE TIME HOLD UP TIME (Typ.) VOLTAGE RANGE FREQUENCY RANGE EFFICIENCY (Typ.) AC CURRENT (Typ.) SETUP, RISE TIME HOLD UP TIME (Typ.) VOLTAGE RANGE FREQUENCY RANGE EFFICIENCY (Typ.) AC CURRENT (Typ.)
SETUP, RISE TIME HOLD UP TIME (Typ.) VOLTAGE RANGE FREQUENCY RANGE EFFICIENCY (Typ.) AC CURRENT (Typ.) INRUSH CURRENT (Typ.) INRUSH CURRENT (Typ.)
INRUSH CURRENT (Typ.) 300ms, 15ms/230VAC 300ms, 15ms/115VAC at full load 300ms, 15ms/230VAC 300ms, 15ms/115VAC at full load
300ms, 15ms/230VAC 300ms, 15ms/115VAC at full load 70ms/230VAC14ms/115VAC at full load 70ms/230VAC14ms/115VAC at full load
70ms/230VAC14ms/115VAC at full load 90 ~ 264VAC 127 ~ 370VDC 90 ~ 264VAC 127 ~ 370VDC
90 ~ 264VAC 127 ~ 370VDC 47 ~ 63Hz 47 ~ 63Hz
47 ~ 63Hz 78% 78%
78% 1.1A/115VAC 0.7 A/230VAC 1.1A/115VAC 0.7 A/230VAC
1.1A/115VAC 0.7 A/230VAC COLD START 60A/230VAC 30A/115VAC COLD START 60A/230VAC 30A/115VAC
COLD START 60A/230VAC 30A/115VAC82% 82%
82%PROTECTION PROTECTION
PROTECTION ENVIRONMENT ENVIRONMENT
ENVIRONMENT LEAKAGE CURRENTNote.8 LEAKAGE CURRENTNote.8
LEAKAGE CURRENTNote.8 OVERLOAD OVER VOLTAGE OVERLOAD OVER VOLTAGE
OVERLOAD OVER VOLTAGEWORKING TEMP. WORKING HUMIDITY STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION WORKING TEMP. WORKING HUMIDITY STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION
WORKING TEMP. WORKING HUMIDITY STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY STANDARDS
SAFETY STANDARDS Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC
Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC 115 ~ 150% rated output power 115 ~ 150% rated output power
115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed Protection type : Hiccup mode, recovers automatically after fault condition is removed
Protection type : Hiccup mode, recovers automatically after fault condition is removed CH1: 5.75 ~ 6.75V CH1: 5.75 ~ 6.75V
CH1: 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover Protection type : Shut down o/p voltage, re-power on to recover
Protection type : Shut down o/p voltage, re-power on to recover -20 ~ +65c (Refer to "Derating Curve") -20 ~ +65c (Refer to "Derating Curve")
-20 ~ +65c (Refer to "Derating Curve") 20 ~ 90% RH non-condensing 20 ~ 90% RH non-condensing
20 ~ 90% RH non-condensing -40 ~ +85c, 10 ~ 95% RH -40 ~ +85c, 10 ~ 95% RH
-40 ~ +85c, 10 ~ 95% RH 0.03%/c (0 ~ 45c) 0.03%/c (0 ~ 45c)
0.03%/c (0 ~ 45c) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL60950-1, TUV EN60950-1, ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved UL60950-1, TUV EN60950-1, ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
UL60950-1, TUV EN60950-1, ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved SAFETY & SAFETY &
SAFETY & ISOLATION LEVELPrimary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP ISOLATION LEVELPrimary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP
ISOLATION LEVELPrimary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP EMC EMC
EMC (Note 5) (Note 5)
(Note 5) OTHERS OTHERS
OTHERS WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION
WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF DIMENSION EMC IMMUNITY MTBF DIMENSION
EMC IMMUNITY MTBF DIMENSION PACKING PACKING
PACKING I/P-O/P:4KVAC I/P-FG:2KVACO/P-FG:1.5KVAC I/P-O/P:4KVAC I/P-FG:2KVACO/P-FG:1.5KVAC
I/P-O/P:4KVAC I/P-FG:2KVACO/P-FG:1.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25c/ 70% RH I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25c/ 70% RH
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25c/ 70% RH Compliance to EN55011(CISPR11),EN55022 (CISPR22) Class B, EN61000-3-2,-3 Compliance to EN55011(CISPR11),EN55022 (CISPR22) Class B, EN61000-3-2,-3
Compliance to EN55011(CISPR11),EN55022 (CISPR22) Class B, EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, EN61204-3, medical level, criteria A Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, EN61204-3, medical level, criteria A
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, EN61204-3, medical level, criteria A 677.8K hrs min.MIL-HDBK-217F (25c) 677.8K hrs min.MIL-HDBK-217F (25c)
677.8K hrs min.MIL-HDBK-217F (25c) 101.6*50.8*29mm (L*W*H) 101.6*50.8*29mm (L*W*H)
101.6*50.8*29mm (L*W*H) 0.15Kg; 96pcs/15.4Kg/0.89CUFT 0.15Kg; 96pcs/15.4Kg/0.89CUFT
0.15Kg; 96pcs/15.4Kg/0.89CUFTNOTE NOTE
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, ratedload and 25c of ambient temperature. 1. All parameters NOT specially mentioned are measured at 230VAC input, ratedload and 25c of ambient temperature.
1. All parameters NOT specially mentioned are measured at 230VAC input, ratedload and 25c of ambient temperature. 2. Ripple & noiseare measured at 20MHz of bandwidth by usinga 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 2. Ripple & noiseare measured at 20MHz of bandwidth by usinga 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
2. Ripple & noiseare measured at 20MHz of bandwidth by usinga 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. 33% Duty cycle maximumwithin every 30 seconds. Average output powershould not exceed the ratedpower. 4. 33% Duty cycle maximumwithin every 30 seconds. Average output powershould not exceed the ratedpower.
4. 33% Duty cycle maximumwithin every 30 seconds. Average output powershould not exceed the ratedpower. 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to performthese EMC tests, please refer to "EMI testingof component powersupplies." EMC directives. For guidance on how to performthese EMC tests, please refer to "EMI testingof component powersupplies."
EMC directives. For guidance on how to performthese EMC tests, please refer to "EMI testingof component powersupplies." (asavailable on http://www.meanwell.com) (asavailable on http://www.meanwell.com)
(asavailable on http://www.meanwell.com) 6. Lengthof set up time is measured at cold first start.Turning ON/OFF the power supply may lead to increase of the set up time. 6. Lengthof set up time is measured at cold first start.Turning ON/OFF the power supply may lead to increase of the set up time.
6. Lengthof set up time is measured at cold first start.Turning ON/OFF the power supply may lead to increase of the set up time. 7. HeatSink HS1,HS2 can not be shorted. 7. HeatSink HS1,HS2 can not be shorted.
7. HeatSink HS1,HS2 can not be shorted. 8. Touch currentwas measured from primary input to DC output. 8. Touch currentwas measured from primary input to DC output.
8. Touch currentwas measured from primary input to DC output.File Name:RPD-60-SPEC2015-07-17 File Name:RPD-60-SPEC2015-07-17
