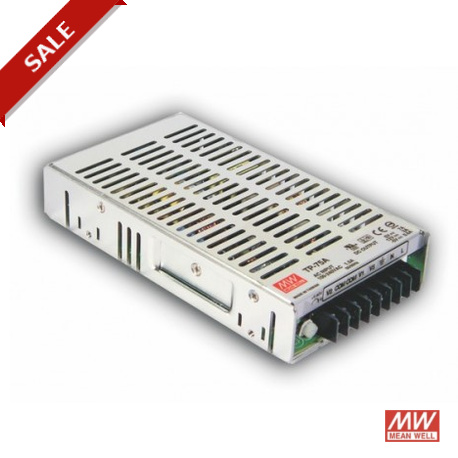

TP-75C TP75C MEANWELL Eingang: 90-264 AC / 127-370 DC, Ausgabe: 3, V1: 5, A1: 10, V2: 15, A2: 3, V3: -15, A3..

TP-75C

TP75C

MEANWELL

Verfügbar

Schiff am heute

Eingang: 90-264 AC / 127-370 DC, Ausgabe: 3, V1: 5, A1: 10, V2: 15, A2: 3, V3: -15, A3: 0,6

Mehr Infos


Spannungsversorgungen

PFC

TP

* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von MEANWELL

MengePreis
1+$70.71
4+$66.24
8+$64.61
12+$63.80
16+$63.32
*Dieser Preis ist pro Einheit und ist der Nettowert (ohne Steuern, falls zutreffend).

Wie es funktioniert

Wie funktioniert das?

1 Fügen Sie die Produkte Ihrer Wahl in den Warenkorb
2 Geben Sie Ihre Kontaktdaten und senden Sie Ihre Anfrage
3 Sie werden per E-Mail mit unseren Preisvorschläge mitzuteilen
4 Beenden Sie einfach Ihre Bestellung und Sie erhalten die Produkte

Es gibt verschiedene Möglichkeiten die Zahlung abzuwickeln
- Kreditkarte
- Banküberweisung
- PayPal


Verwandte Produkte

Mehr Infos



7 5 W Tr i p l e O u t p u t w i t h P F C F u n c t i o n 7 5 W Tr i p l e O u t p u t w i t h P F C F u n c t i o n
7 5 W Tr i p l e O u t p u t w i t h P F C F u n c t i o n T P - 7 5s e r i e s T P - 7 5s e r i e s
T P - 7 5s e r i e s Features : Features :
Features : Universal AC input / Full range Universal AC input / Full range
Universal AC input / Full range Built-in active PFCfunction, PF>0.95 Built-in active PFCfunction, PF>0.95
Built-in active PFCfunction, PF>0.95 Protections: Shortcircuit / Overload / Over voltage Protections: Shortcircuit / Overload / Over voltage
Protections: Shortcircuit / Overload / Over voltage Low profile: 33mmthickness Low profile: 33mmthickness
Low profile: 33mmthickness LED indicator for power on LED indicator for power on
LED indicator for power on Cooling by free air convection Cooling by free air convection
Cooling by free air convection Fixed switching frequency at PFC:67KHz PWM:134KHz Fixed switching frequency at PFC:67KHz PWM:134KHz
Fixed switching frequency at PFC:67KHz PWM:134KHz 3 years warranty 3 years warranty
3 years warrantySPECIFICATION SPECIFICATION
SPECIFICATION MODEL MODEL
MODEL TP-75ATP-75BTP-75C TP-75ATP-75BTP-75C
TP-75ATP-75BTP-75C OUTPUT NUMBER DC VOLTAGE OUTPUT NUMBER DC VOLTAGE
OUTPUT NUMBER DC VOLTAGE CH1 CH1
CH1 5V 5V
5V CH2 CH2
CH2 12V 12V
12V CH3 CH3
CH3 -5V -5V
-5V CH1 CH1
CH1 5V 5V
5V CH2 CH2
CH2 12V 12V
12V CH3 CH3
CH3 -12V -12V
-12V CH1 CH1
CH1 5V 5V
5V CH2 CH2
CH2 15V 15V
15V CH3 CH3
CH3 -15V -15V
-15V RATED CURRENT CURRENT RANGE RATED CURRENT CURRENT RANGE
RATED CURRENT CURRENT RANGE RATED POWER RATED POWER
RATED POWER 7A 3A 0.6A7A 3A 0.4A6A 2.5A0.5A 7A 3A 0.6A7A 3A 0.4A6A 2.5A0.5A
7A 3A 0.6A7A 3A 0.4A6A 2.5A0.5A 1.5 ~ 10A0.2 ~ 4A0 ~ 0.6A1.5 ~ 10A0.2 ~ 4A0 ~ 0.6A1.5 ~ 10A0.2 ~ 3A0 ~ 0.6A 1.5 ~ 10A0.2 ~ 4A0 ~ 0.6A1.5 ~ 10A0.2 ~ 4A0 ~ 0.6A1.5 ~ 10A0.2 ~ 3A0 ~ 0.6A
1.5 ~ 10A0.2 ~ 4A0 ~ 0.6A1.5 ~ 10A0.2 ~ 4A0 ~ 0.6A1.5 ~ 10A0.2 ~ 3A0 ~ 0.6A 74W 75.8W75W 74W 75.8W75W
74W 75.8W75WOUTPUT OUTPUT
OUTPUT RIPPLE & NOISE (max.)Note.2100mVp-p 120mVp-p 100mVp-p 100mVp-p 120mVp-p 120mVp-p 100mVp-p 120mVp-p 120mVp-p RIPPLE & NOISE (max.)Note.2100mVp-p 120mVp-p 100mVp-p 100mVp-p 120mVp-p 120mVp-p 100mVp-p 120mVp-p 120mVp-p
RIPPLE & NOISE (max.)Note.2100mVp-p 120mVp-p 100mVp-p 100mVp-p 120mVp-p 120mVp-p 100mVp-p 120mVp-p 120mVp-p VOLTAGE ADJ. RANGE VOLTAGE ADJ. RANGE
VOLTAGE ADJ. RANGE CH1: 4.75 ~ 5.5V CH1: 4.75 ~ 5.5V
CH1: 4.75 ~ 5.5V VOLTAGE TOLERANCE Note.3 3.0% VOLTAGE TOLERANCE Note.3 3.0%
VOLTAGE TOLERANCE Note.3 3.0% 4.0% 4.0%
4.0% 8.0% 8.0%
8.0% 3.0% 3.0%
3.0% 4.0% 4.0%
4.0% 8.0% 8.0%
8.0% 3.0% 3.0%
3.0% 4.0% 4.0%
4.0% 8.0% 8.0%
8.0% LINE REGULATION LOAD REGULATION LINE REGULATION LOAD REGULATION
LINE REGULATION LOAD REGULATION 1.0% 1.0%
1.0% 3.0% 3.0%
3.0% 1.0% 1.0%
1.0% 4.0% 4.0%
4.0% 1.0% 1.0%
1.0% 8.0% 8.0%
8.0% 1.0% 1.0%
1.0% 3.0% 3.0%
3.0% 1.0% 1.0%
1.0% 4.0% 4.0%
4.0% 1.0% 1.0%
1.0% 8.0% 8.0%
8.0% 1.0% 1.0%
1.0% 3.0% 3.0%
3.0% 1.0% 1.0%
1.0% 4.0% 4.0%
4.0% 1.0% 1.0%
1.0% 8.0% 8.0%
8.0% SETUP, RISE TIME HOLD UP TIME (Typ.) SETUP, RISE TIME HOLD UP TIME (Typ.)
SETUP, RISE TIME HOLD UP TIME (Typ.) 800ms, 60ms at full load 800ms, 60ms at full load
800ms, 60ms at full load 36ms at full load 36ms at full load
36ms at full load VOLTAGE RANGENote.5 90 ~ 264VAC 127 ~ 370VDC VOLTAGE RANGENote.5 90 ~ 264VAC 127 ~ 370VDC
VOLTAGE RANGENote.5 90 ~ 264VAC 127 ~ 370VDC INPUT INPUT
INPUTPROTECTION PROTECTION
PROTECTION ENVIRONMENT ENVIRONMENT
ENVIRONMENT SAFETY & EMC SAFETY & EMC
SAFETY & EMC (Note 4) (Note 4)
(Note 4)OTHERS OTHERS
OTHERS FREQUENCY RANGE POWER FACTOR (Typ.) EFFICIENCY (Typ.) FREQUENCY RANGE POWER FACTOR (Typ.) EFFICIENCY (Typ.)
FREQUENCY RANGE POWER FACTOR (Typ.) EFFICIENCY (Typ.) AC CURRENT (Typ.) INRUSH CURRENT (Typ.) LEAKAGE CURRENT AC CURRENT (Typ.) INRUSH CURRENT (Typ.) LEAKAGE CURRENT
AC CURRENT (Typ.) INRUSH CURRENT (Typ.) LEAKAGE CURRENTOVERLOAD OVERLOAD
OVERLOADOVER VOLTAGE WORKING TEMP. OVER VOLTAGE WORKING TEMP.
OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION WORKING HUMIDITY STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION
WORKING HUMIDITY STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY STANDARDS
SAFETY STANDARDS WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION
WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY EMC IMMUNITY
EMC IMMUNITY MTBF DIMENSION MTBF DIMENSION
MTBF DIMENSION PACKING PACKING
PACKING 47 ~ 63Hz 47 ~ 63Hz
47 ~ 63Hz PF>0.95/230VAC PF>0.98/115VAC at full load PF>0.95/230VAC PF>0.98/115VAC at full load
PF>0.95/230VAC PF>0.98/115VAC at full load 70% 70%
70% 1.5A/115VAC 0.8A/230VAC COLD START 20A/230VAC 1.5A/115VAC 0.8A/230VAC COLD START 20A/230VAC
1.5A/115VAC 0.8A/230VAC COLD START 20A/230VAC <2mA / 240VAC <2mA / 240VAC
<2mA / 240VAC 105 ~ 150% rated output power 105 ~ 150% rated output power
105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed Protection type : Hiccup mode, recovers automatically after fault condition is removed
Protection type : Hiccup mode, recovers automatically after fault condition is removed 5.75 ~ 6.75V on +5V 5.75 ~ 6.75V on +5V
5.75 ~ 6.75V on +5V Protection type : Shut down o/p voltage, re-power on to recover Protection type : Shut down o/p voltage, re-power on to recover
Protection type : Shut down o/p voltage, re-power on to recover -10 ~ +60 (Refer to "Derating Curve") -10 ~ +60 (Refer to "Derating Curve")
-10 ~ +60 (Refer to "Derating Curve") 20 ~ 90% RH non-condensing 20 ~ 90% RH non-condensing
20 ~ 90% RH non-condensing -20 ~ +85, 10 ~ 95% RH -20 ~ +85, 10 ~ 95% RH
-20 ~ +85, 10 ~ 95% RH 0.03%/ (0 ~ 50) 0.03%/ (0 ~ 50)
0.03%/ (0 ~ 50) 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes UL60950-1, TUV EN60950-1 approved UL60950-1, TUV EN60950-1 approved
UL60950-1, TUV EN60950-1 approved I/P-O/P:3KVACI/P-FG:2KVACO/P-FG:0.5KVAC 1min. I/P-O/P:3KVACI/P-FG:2KVACO/P-FG:0.5KVAC 1min.
I/P-O/P:3KVACI/P-FG:2KVACO/P-FG:0.5KVAC 1min. I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A 198.4K hrs min. MIL-HDBK-217F (25) 198.4K hrs min. MIL-HDBK-217F (25)
198.4K hrs min. MIL-HDBK-217F (25) 179*99*33mm (L*W*H) 179*99*33mm (L*W*H)
179*99*33mm (L*W*H) 0.65Kg; 20pcs/12.7Kg/0.64CUFT 0.65Kg; 20pcs/12.7Kg/0.64CUFT
0.65Kg; 20pcs/12.7Kg/0.64CUFTNOTE NOTE
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, ratedload and 25 of ambient temperature. 1. All parameters NOT specially mentioned are measured at 230VAC input, ratedload and 25 of ambient temperature.
1. All parameters NOT specially mentioned are measured at 230VAC input, ratedload and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com) EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com) 5. Derating may be needed underlow input voltages. Please checkthe derating curve for more details. 5. Derating may be needed underlow input voltages. Please checkthe derating curve for more details.
5. Derating may be needed underlow input voltages. Please checkthe derating curve for more details. Fil e Name:TP-75-SPEC2014-12-12 Fil e Name:TP-75-SPEC2014-12-12
Fil e Name:TP-75-SPEC2014-12-12
