7GN3292U
GN3292U
LOVATO ELECTRIC
1
Nennstrom in AC1 32A
Schalter 4-polig GN92 32 A Modell U 65x65

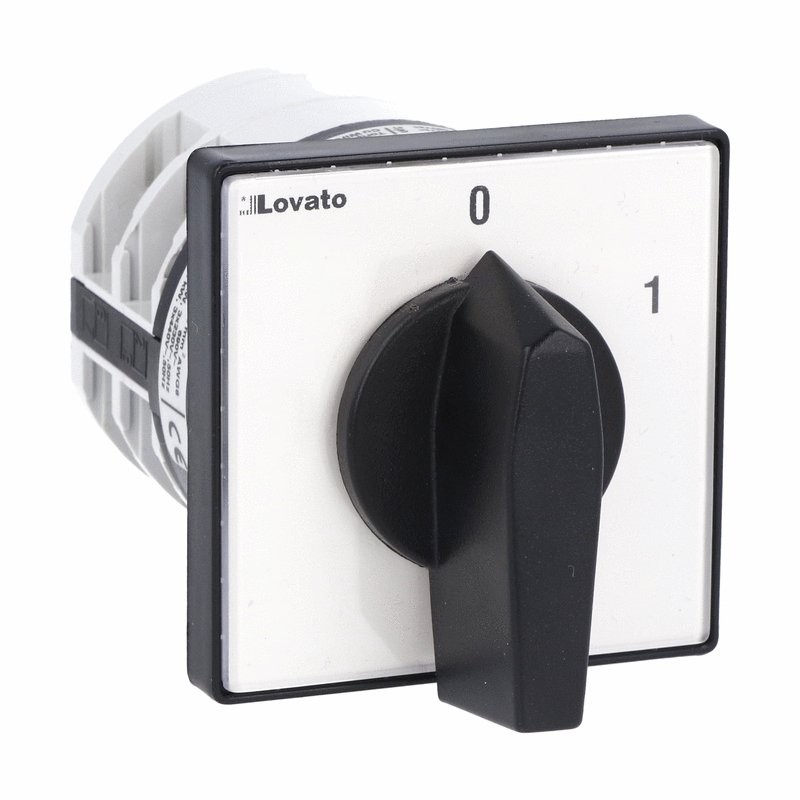

DREHNOCKENSCHALTER 7GN SERIE, EIN-AUS-SCHALTER 4-POLIG 32A, ZUR FRONTMONTAGE MIT SCHWARZEM GRIFF, FRONTPLATTE 65X65MM
Nockenschalter - LOVATO ELECTRIC
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von LOVATO ELECTRIC
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Bestellnummer | 7GN3292U |
Gewicht [g] | 232 |
Produktpaketmenge | 1 |
Sammelpackung Bestellmenge | 1 |
Produktpaketmaße [mm] | 068X068X105 |
Volumen [cm³] | 485.52 |
Barcode [EAN13] | 3850144002586 |
HS Code | 85365080 |
Product designation | Rotary cam switches | |||
Product type designation | 7GN32 | |||
General characteristics | ||||
Switching diagram | 92 - ON/OFF switch 4 poles | |||
N° of elements | 2 | |||
Mounting form | Front mounting with black handle (U) | |||
Contact characteristics | ||||
Rated insulation voltage Ui | ||||
IEC/EN | V | 690 | ||
UL/CSA | V | 600 | ||
Rated impulse withstand voltage Uimp | kV | 6 | ||
Conventional free air thermal current Ith | ||||
IEC/EN | A | 32 | ||
UL/CSA | A | 40 | ||
Rated operational voltage | V | 480 | ||
Rated operational impulse voltage | kV | 4 | ||
Maximum fuse size for short-circuit protection In (gG) | ||||
10kA | A | 32 | ||
15kA | A | 32 | ||
25kA | A | 32 | ||
50kA | A | 32 | ||
Rated short time current Icw | ||||
1s | A | 800 | ||
Conductivity | 10/5 mA/V | |||
Operational current Ie IEC/EN | ||||
AC1/AC21A | ||||
A | 32 | |||
AC15 | ||||
110V | A | 25 | ||
220/230V | A | 20 | ||
380/400V | A | 10 | ||
660/690V | A | 2 | ||
Rated operational power in AC | ||||
Three-phase AC3 | ||||
220/230V | kW | 7.5 | ||
380/440V | kW | 11 | ||
500/690V | kW | 11 | ||
Single-phase AC3 | ||||
110V | kW | 2.2 | ||
220/230V | kW | 4 | ||
380/440V | kW | 6.5 | ||
Three-phase AC23A | ||||
220/230V | kW | 8 | ||
380/440V | kW | 15 | ||
500/690V | kW | 18.5 | ||
Single-phase AC23A | ||||
110V | kW | 2.2 | ||
220/230V | kW | 4 | ||
380/440V | kW | 7.5 | ||
Rated operational current in DC | ||||
DC21A | ||||
48V | A | 32 | ||
60V | A | 32 | ||
110V | A | 6 | ||
220V | A | 0.9 | ||
DC23A (poles in series) | ||||
24V | A | 32 (1) | ||
48V | A | 32 (2) | ||
60V | A | 32 (3) | ||
110V | A | 15 (3) | ||
220V | A | 12 (4) | ||
DC13 | ||||
24V | A | 32 | ||
48V | A | 25 | ||
60V | A | 16 | ||
110V | A | 3 | ||
220V | A | 0.5 | ||
Power dissipation | W | 1.5 | ||
Mechanical features | ||||
Terminals screw | M4 | |||
Tightening torque for terminals max | Nm | 1.2 | ||
Conductor size | ||||
AWG - Rigid cable | ||||
min | AWG | 16 | ||
Max | AWG | 8 | ||
AWG - Flexible cable | ||||
min | AWG | 16 | ||
Max | AWG | 10 | ||
Conductor size (IEC) - Flexible cable | ||||
min | mm² | 1.5 | ||
Max | mm² | 4 | ||
Conductor size (IEC) - Rigid cable | ||||
min | mm² | 1.5 | ||
Max | mm² | 6 | ||
Mechanical life | cycles | 5x10⁶ | ||
UL technical data | ||||
Motor power for direct-on-line control | ||||
for three-phase motor | ||||
120V | HP | 5 | ||
240V | HP | 10 | ||
480V | HP | 15 | ||
600V | HP | 15 | ||
for single-phase motor | ||||
120V | HP | 2 | ||
240V | HP | 5 | ||
Ambient conditions | ||||
Temperature | ||||
Operating temperature | ||||
min | °C | -25 | ||
max | °C | +55 | ||
Storage temperature | ||||
min | °C | -40 | ||
max | °C | +70 | ||
Resistance & Protection | ||||
Frontal IP degree | IP40 | |||
Terminals IP degree | IP00 | |||
ETIM classification | ||||
ETIM 8.0 | EC001105 - Off-load switch |
