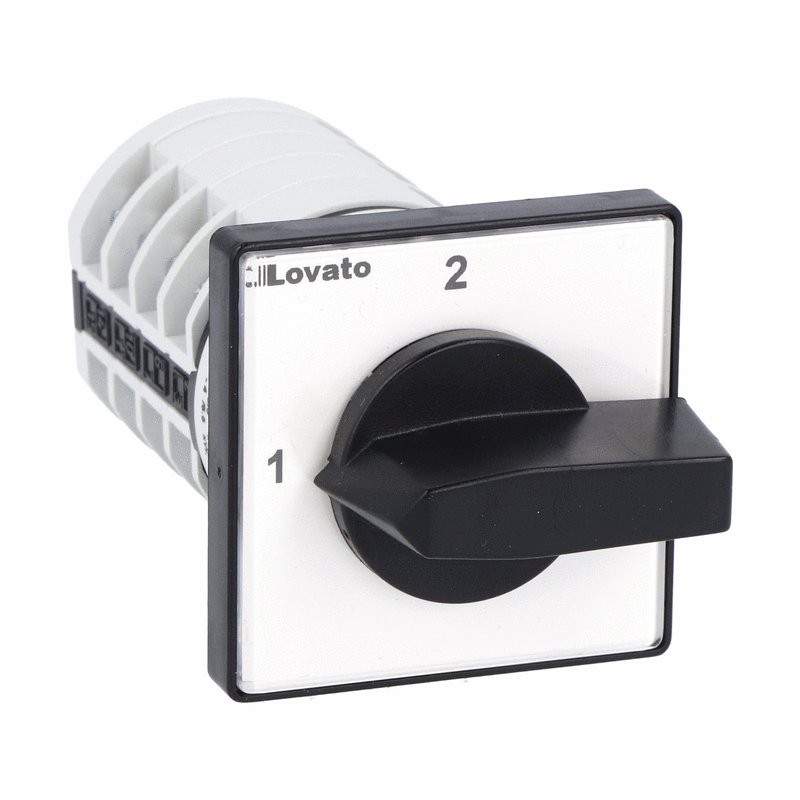

7GN1269U GN1269U LOVATO Nennstrom in AC1 16A
7GN1269U
GN1269U
LOVATO ELECTRIC
Nennstrom in AC1 16A
Schalter "1-2" 4-polig GN69 12 A Modell U 48x48
DREHNOCKENSCHALTER 7GN SERIE, UMSCHALTER OHNE 0 4-POLIG 16A, ZUR FRONTMONTAGE MIT SCHWARZEM GRIFF, FRONTPLATTE 90X90MM
Nockenschalter - LOVATO ELECTRIC
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von LOVATO ELECTRIC
Mehr Infos
▲| Bestellnummer | 7GN1269U |
| Gewicht [g] | 123.8 |
| Produktpaketmenge | |
| Sammelpackung Bestellmenge | |
| Produktpaketmaße [mm] | 050X050X102 |
| Volumen [cm³] | 255 |
| Barcode [EAN13] | 3850144006911 |
| HS Code | 85365080 |
UL
cCSAus
EAC
IEC/EN/BS 60947-1
IEC/EN/BS 60947-3
IEC/EN/BS 60947-5-1
UL60947-4-1
CSA C22.2 n° 14
| Product designation | Rotary cam switches | |||
| Product type designation | 7GN12 | |||
| General characteristics | ||||
| Switching diagram | 69 - Changeover switch without 0 4 poles | |||
| N° of elements | 4 | |||
| Mounting form | Front mounting with black handle (U) | |||
| Contact characteristics | ||||
| Rated insulation voltage Ui | ||||
| IEC/EN | V | 690 | ||
| UL/CSA | V | 600 | ||
| Rated impulse withstand voltage Uimp | kV | 6 | ||
| Conventional free air thermal current Ith | ||||
| IEC/EN | A | 16 | ||
| UL/CSA | A | 15 | ||
| Rated operational voltage | V | 480 | ||
| Rated operational impulse voltage | kV | 4 | ||
| Maximum fuse size for short-circuit protection In (gG) | ||||
| 10kA | A | 16 | ||
| 15kA | A | 10 | ||
| 25kA | A | 10 | ||
| Rated short time current Icw | ||||
| 1s | A | 200 | ||
| Conductivity | 10/5 mA/V | |||
| Operational current Ie IEC/EN | ||||
| AC1/AC21A | ||||
| A | 16 | |||
| AC15 | ||||
| 110V | A | 10 | ||
| 220/230V | A | 8 | ||
| 380/400V | A | 4 | ||
| 660/690V | A | 1.5 | ||
| Rated operational power in AC | ||||
| Three-phase AC3 | ||||
| 220/230V | kW | 2.5 | ||
| 380/440V | kW | 4 | ||
| 500/690V | kW | 5.5 | ||
| Single-phase AC3 | ||||
| 110V | kW | 0.8 | ||
| 220/230V | kW | 1.5 | ||
| 380/440V | kW | 2.2 | ||
| Three-phase AC23A | ||||
| 220/230V | kW | 3 | ||
| 380/440V | kW | 5.5 | ||
| 500/690V | kW | 7.5 | ||
| Single-phase AC23A | ||||
| 110V | kW | 0.8 | ||
| 220/230V | kW | 1.7 | ||
| 380/440V | kW | 3 | ||
| Rated operational current in DC | ||||
| DC21A | ||||
| 48V | A | 12 | ||
| 60V | A | 12 | ||
| 110V | A | 4 | ||
| 220V | A | 0.6 | ||
| 440V | A | 0.25 | ||
| DC23A (poles in series) | ||||
| 24V | A | 10 (1) | ||
| 48V | A | 10 (2) | ||
| 60V | A | 10 (3) | ||
| 110V | A | 5 (3) | ||
| 220V | A | 5 (4) | ||
| DC13 | ||||
| 24V | A | 12 | ||
| 48V | A | 10 | ||
| 60V | A | 8 | ||
| 110V | A | 1 | ||
| 220V | A | 0.4 | ||
| 440V | A | 0.15 | ||
| Power dissipation | W | 0.8 | ||
| Mechanical features | ||||
| Terminals screw | M3 | |||
| Tightening torque for terminals max | Nm | 0.5 | ||
| Conductor size | ||||
| AWG - Rigid cable | ||||
| min | AWG | 20 | ||
| Max | AWG | 12 | ||
| AWG - Flexible cable | ||||
| min | AWG | 20 | ||
| Max | AWG | 14 | ||
| Conductor size (IEC) - Flexible cable | ||||
| min | mm² | 0.5 | ||
| Max | mm² | 2.5 | ||
| Conductor size (IEC) - Rigid cable | ||||
| min | mm² | 0.5 | ||
| Max | mm² | 2.5 | ||
| Mechanical life | cycles | 3x10⁶ | ||
| UL technical data | ||||
| Motor power for direct-on-line control | ||||
| for three-phase motor | ||||
| 120V | HP | 1.5 | ||
| 240V | HP | 3 | ||
| for single-phase motor | ||||
| 120V | HP | 0.5 | ||
| 240V | HP | 1 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +55 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +70 | ||
| Resistance & Protection | ||||
| Frontal IP degree | IP40 | |||
| Terminals IP degree | IP00 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC001029 - Selector switch, complete | |||
