SPD2208
ELDON
1
Verfügbar Schiff am heute

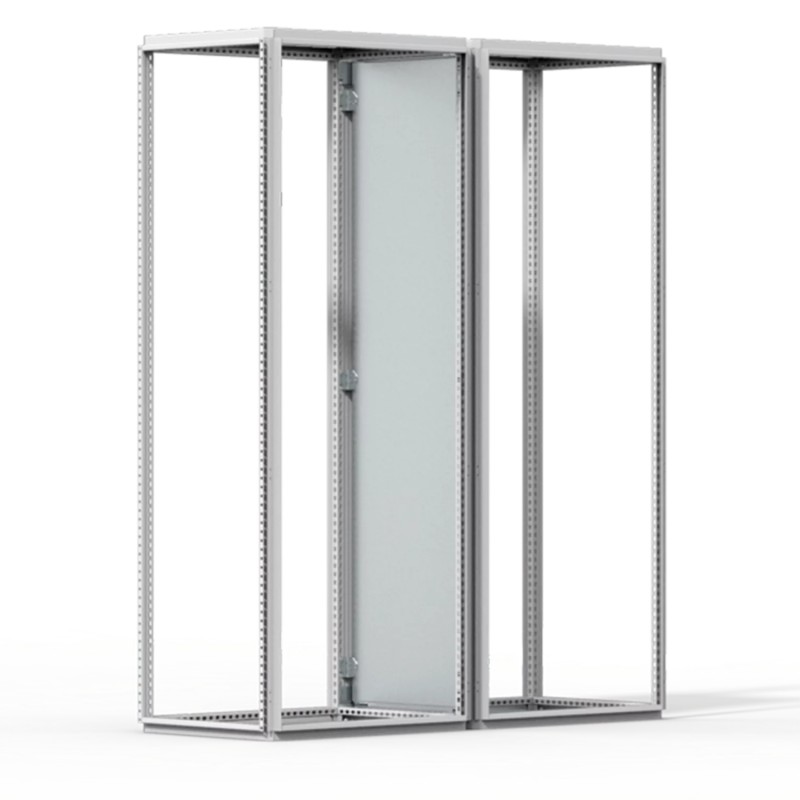

Trennwand, 2200x800 SPD2208
Separator plate, 2200x800, verzinkt
Diese Stahltrennwand trennt gereihte Schränke unter Beibehaltung der Schutzart und schafft individuelle Räume für die Montage von Komponenten.
Elektroverteiler-Systeme (inkl. Installationsverteiler) > Abschottung für Zähler-/Verteilereinbau
Schaltschränke Stahlblech
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von ELDON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Beschreibung: | Zur Abtrennung von angereihten MCS/MCD Schränken. |
Material: | 1,5 mm verzinktes Stahlblech. |
Montagemöglichkeiten: | IP 43 TYPE 1 Abdichtung kann mit der Dichtung SPDG erfolgen. CCJ Halterungen sind erforderlich, um die Trennwand SPD in den Schränken zu montieren. Verwenden Sie zum Anreihen von Schaltschränken die Artikel CCM und CCI. Für die Elektromagnetische-Abschirmung muss die SPDEG-Dichtung verwendet werden. |
Verpackungseinheit: | 1 Stück. |
Feature: | Zinc plated steel separation plate for mild steel combinable floor standing enclosures. |
Advantage: | The plate can be mounted easily between two bayed enclosures providing segregation. Protection degree IP 43 tested, when mounted with the separation plate gasket, SPDG. |
Benefit: | The enclosure assembly can be easily segregated creating individual spaces for components to be mounted. These areas are commonly used to group component types, for example power in one section and control in another. These spaces can also be used when some components are more sensitive to temperature than others, allowing better control of the enclosure's thermal management. |
Comment: | Separation brackets, CCJ, are required in order to mount the separation plate. If the separation plate is mounted within an enclosure assembly, the internal corner baying kit, CCM, and external baying brackets, CCI, should be used. Mounting the separation gasket, SPDG, will increase the protection degree on either side of the plate to IP 43. The separation plate can not be mounted within stainless steel enclosures. |
Titel: | Größe: | Typ: |
---|---|---|
SPD2208 SPD2208 DE_SPD1804.pdf | 140 Kbytes | |
Gesamtkatalog herunterladen |
