SPD2006
ELDON
1
Verfügbar Schiff am heute

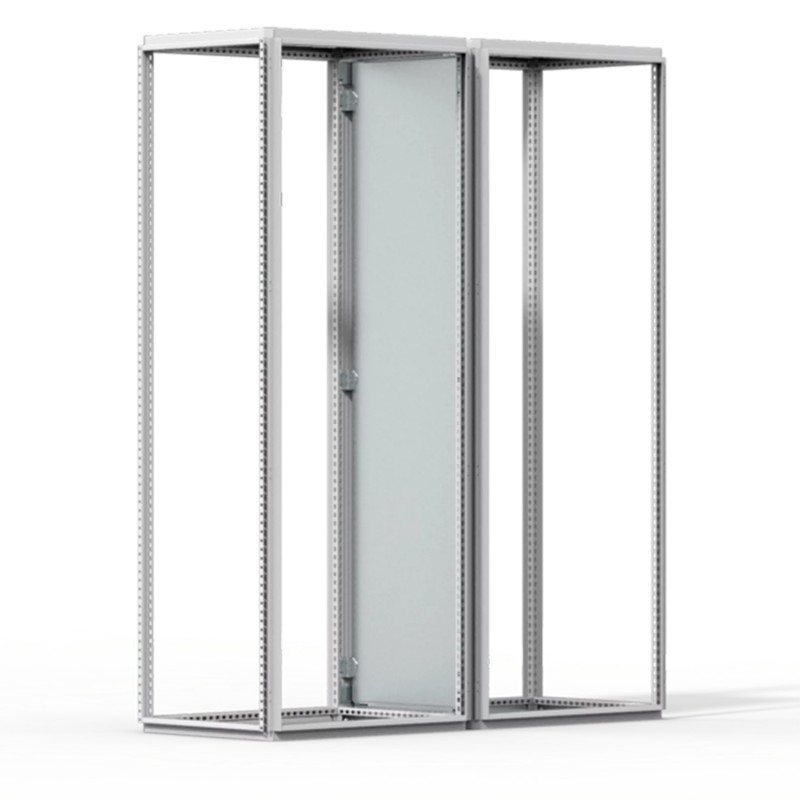

Trennwand, 2000x600 SPD2006
Separator plate, 2000x600, verzinkt
Diese EMV-Trennwand aus Stahl trennt gereihte Schränke unter Beibehaltung der Schutzart und schafft individuelle Räume für die Montage von Komponenten.
Elektroverteiler-Systeme (inkl. Installationsverteiler) > Abschottung für Zähler-/Verteilereinbau
Schaltschränke Stahlblech
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von ELDON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Beschreibung: | Zur Abtrennung von angereihten Schränken. Zu montieren mit Anreihsatz CCJ. Für eine EMI-Trennung muss die SPDEG Dichtung verwendet werden. |
Material: | 1.5 mm verzinktes Stahlblech. |
Verpackungseinheit: | 1 Stück. |
Montagemöglichkeiten: | Zur Monzage werden CCJ-Anreihwinkel zusätzlich benötigt. |
Feature: | Zinc plated steel EMC separation plate for mild steel combinable floor standing enclosures. |
Advantage: | The plate can be mounted easily between two bayed enclosures providing segregation. Protection degree IP 43 and EMC tested, when mounted with the separation plate gasket, SPDEG. |
Benefit: | The enclosure assembly can be easily segregated creating individual spaces for components to be mounted. These areas are commonly used to group component types, for example power in one section and control in another. These spaces can also be used when some components are more sensitive to temperature than others, allowing better control of the enclosure's thermal management. |
Comment: | Separation brackets, CCJ, are required in order to mount the separation plate. If the separation plate is mounted within an enclosure assembly, the internal corner baying kit, CCM, and/or external baying brackets, CCE, should be used instead of the internal baying brackets, CCI. Mounting the EMC separation gasket, SPDEG, will increase the EMC performance on either side of the plate. The separation plate can not be mounted within stainless steel enclosures. |
Titel: | Größe: | Typ: |
---|---|---|
SPD2006 SPD2006 DE_SPD2006.pdf | 139 Kbytes | |
Gesamtkatalog herunterladen |
