PCP06
ELDON
2
Verfügbar Schiff am heute

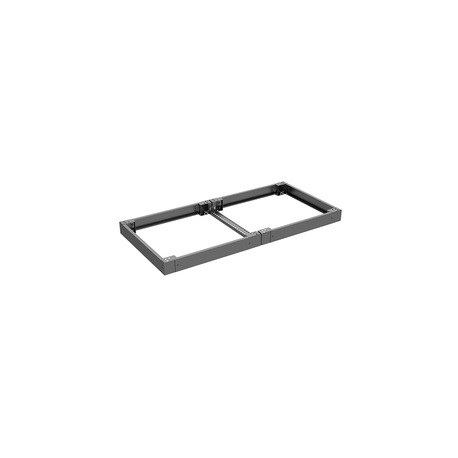

Sockelverstärkungsprofil, 600 PCP06
Die Grundlage für die Kombination, 600, Stahlblech RAL7022. Packung mit 2 Einheiten.
This profile acts as a stabiliser and allows cables to be routed between bayed enclosures, creating the ideal solution when cables have to be installed underneath the enclosure.
Schaltschranksysteme > Sockel/Sockelelement (Schaltschrank)
Schaltschränke Stahlblech
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von ELDON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Beschreibung: | Acts as a stabiliser when cabling is routed between bayed enclosures. With the PCP, plinths can be combined and fixed to the floor before the enclosures are mounted on them. The PCP can be used when cables have to go under the enclosure. For 200 mm high plinths, the PCP can be mounted in three different heights, top, middle or bottom. The hole pattern for cage nuts and M5x10 screws, allows accessories to be mounted. |
Material: | 2 mm steel plate. |
Oberfläche: | RAL 7022 structured powder coating. |
Verpackungseinheit: | 2 Profiles. Mounting accessories included with PCP. |
Feature: | Mild steel combining profile with 25mm integrated hole pattern, for combinable floor standing enclosure plinths. |
Advantage: | The profile is mounted, connecting the plinth's front and rear corner pieces of the bayed plinths, providing a more rigid solution. The integrated hole pattern allows customers to fix cables and components securely. |
Benefit: | The extra rigidly that the profile provides ensures that the enclosure's assembly can be transported safety and securely either in the factory or in the field. Both incoming and outgoing cables can be installed and secured easily to the profile's hole pattern. |
Comment: | The reinforcement can be achieved with the used of plinth side panels in the joinings, but this solution is better because is joining the four corner pieces instead two and maintain the communication between the plinths. |
Titel: | Größe: | Typ: |
---|---|---|
PCP06 PCP06 DE_PCP06.pdf | 113 Kbytes | |
Gesamtkatalog herunterladen |
