PS1080
ELDON
2
Verfügbar Schiff am heute

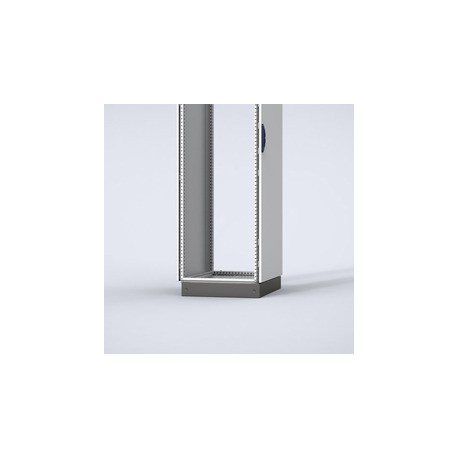

Sockel für Seiten, 100x800 PS1080
Seite Buchse, 100x800, Stahlblech RAL7022. Packung mit 2 Einheiten.
The extra space created by the plinth is closed off by using these panels in order to restrict access to this area.
Schaltschranksysteme > Sockel/Sockelelement (Schaltschrank)
Schaltschränke Stahlblech
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von ELDON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Beschreibung: | Side panels to cover the openings in the sides of the PF plinth. Double folded panels for maximum strength. Compatible with combinable and semi-compact ranges. |
Material: | 1.5 mm steel plate. |
Oberfläche: | RAL 7022 structured powder coating. |
Verpackungseinheit: | 2 panels. Mounting accessories included with PF/PV. |
Feature: | A pair of painted steel plinth side panels to secure single or bayed plinths for mild steel floor standing enclosures. |
Advantage: | The side panels close the sides of the single or bayed plinths securing the extra space created between the installation floor and enclosure's bottom plates. |
Benefit: | The side panels protect the extra space created underneath the enclosure. |
Comment: | Side panels can be used to improve the rigidity of bayed plinths however cables cannot pass through them easily, however to optimise the rigidity of the bayed plinths then plinth combining profiles PCP, should be used instead. |
