MSVH1800
ELDON
1
Verfügbar Schiff am heute
Stecken Sie in Sammelschiene sup hinten 1800
Unterstützung bars später, im Jahre 1800 zu Abschnitten, plug-in, bis zu 1600A

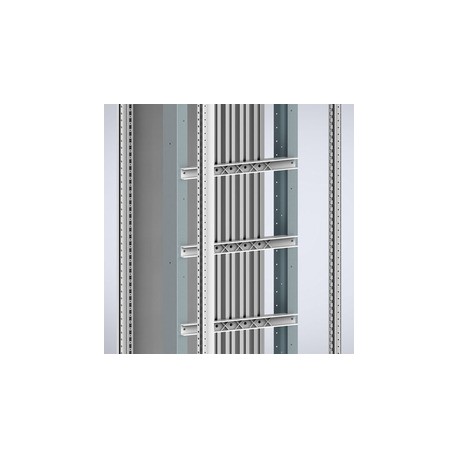

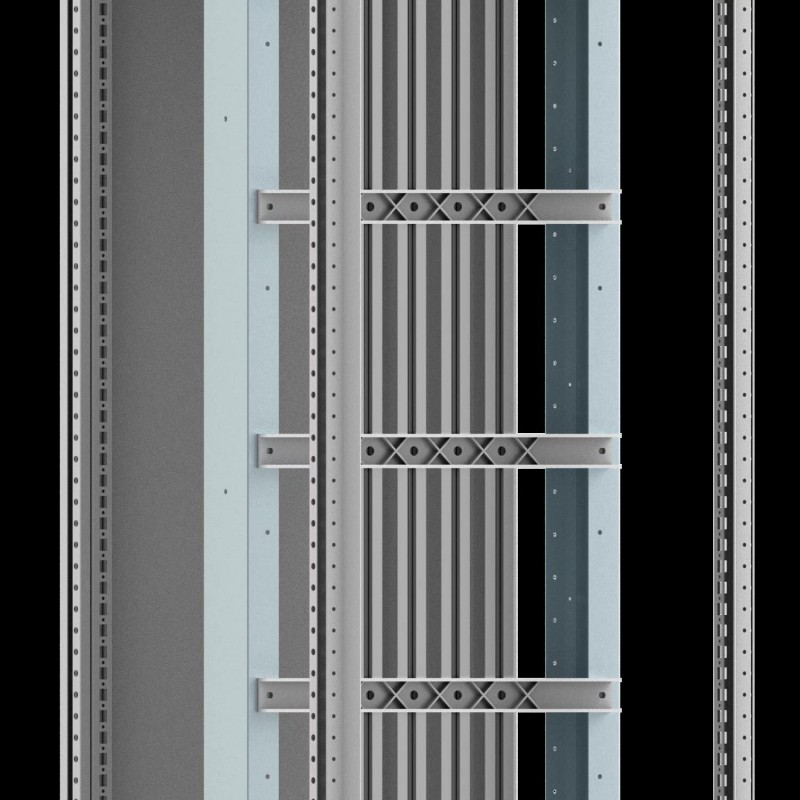

These vertical plug-in distribution busbar supports, MSVH, should be mounted on the enclosure behind the plug-in cover. They are available of the shelf and tested according to IEC 61439.
Energieverteilsysteme/Schaltanlagen > Zubehör/Ersatzteile für Sammelschienen
Stromverteilung
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von ELDON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Beschreibung: | Busbar supports up to 1600A to be mounted vertically behind the plug-in compartments. Rated short-time withstand current up to 35KA with rear supports and up to 50KA with rear and front supports. Mounts to the vertical profiles included in the rear cover plate for plugin sections MSSB. |
Material: | Polycarbonate reinforced with 10% of glass material. |
Lieferumfang: | 4 busbar support with mounting material. |
Feature: | Vertical plug-in distribution busbar supports, are to be mounted onto the enclosure, behind a plug-in cover. |
Advantage: | The standard supports are available off the shelf and have been tested according to IEC 61439. |
Benefit: | A flexible and reliable solution that ensures design, procurement and installation can be done efficiently reducing the labour time required. |
Comment: | The supports should be mounted onto the plug-in system vertical profiles (MSSB). Plug-in busbars (MSBS), must be used in conjunction with these supports. |
