FMB600 nVent HOFFMAN Schließgestänge, 600

Beschreibung:

Für MCF/MCS-Schränke. Die Schließstange verbindet die abhängigen Türen mechanisch mit der Haupttür. Die Länge der Schließstange entspricht der Türbreite.

Material:

Stahlblech, verzinkt.

Verpackungseinheit:

5 Stück mit Montagematerial.

Feature:

Zinc plated connection bar for interlocking combinable floor standing enclosure doors.

Advantage:

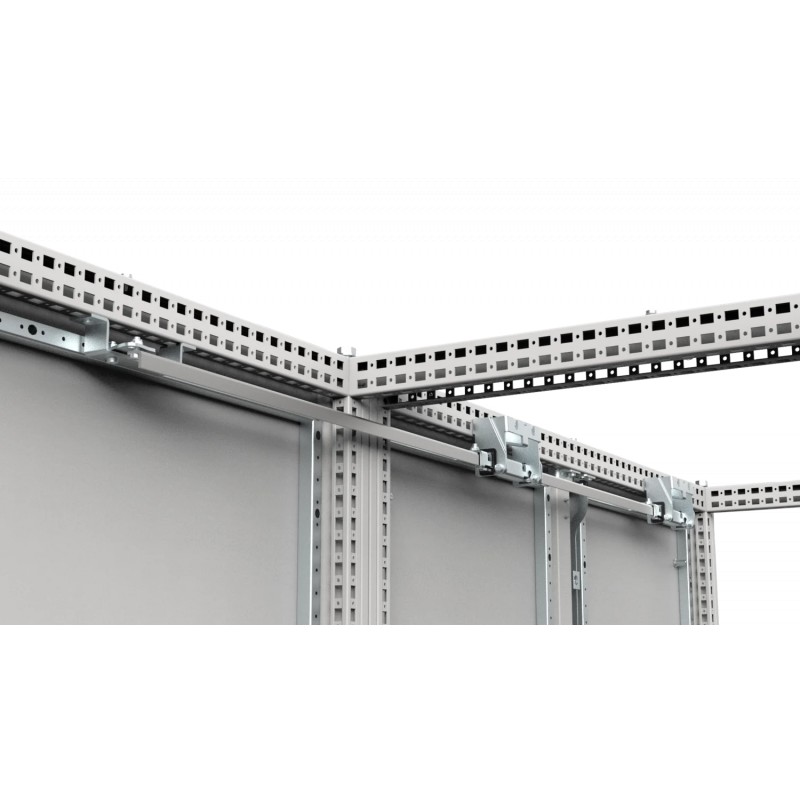

The interlocking bar mechanically connects the system actuator FMA, of the master door, to the interlock kit FMS, of the slave door. As the bar is already cut to size customers can easily mount it to the other components of the interlocking system.

Benefit:

The slave door is fully dependant upon the enclosure's master door when mounted along with the system actuator FMA and the slave door interlock kit FMS. This means that the slave door may only be opened by first opening the master door.

Comment:

To build an enclosure system that consists of multiple doors each with an integrated interlocking system then each neighbouring master and slave door will require an interlocking system to be mounted. The interlocking system consists of: System actuator FMA, interlocking bar FMB and a slave door interlock kit FMS.
