PVD02
ELDON
1
Verfügbar Schiff am heute

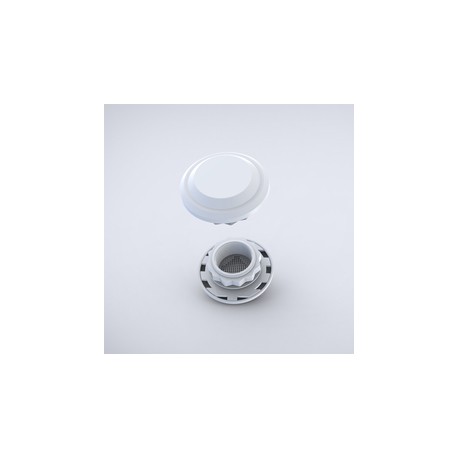

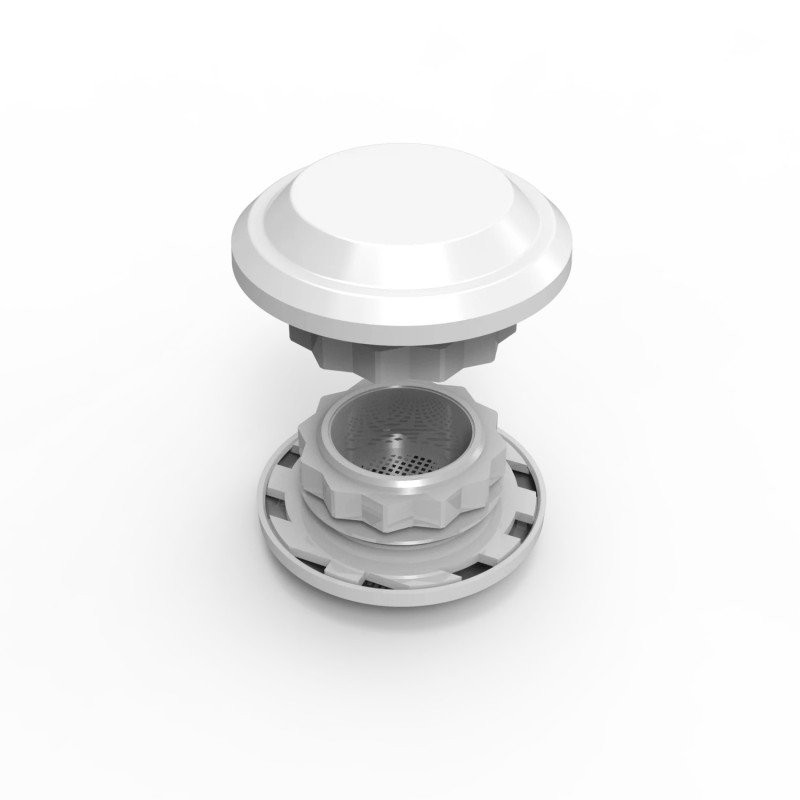

Druckstopfen, IP55 PVD02
Plug Druck, IP55
Der Druckausgleichsstopfen entlastet den Druck, der aufgrund von Temperaturunterschieden im Inneren des Schranks und der Außenumgebung erzeugt wird, und verringert gleichzeitig die Gefahr des Eindringens von Staub in den Schrank.
Druckerhöhung/-abfall > Zubehör/Ersatzteile für Ventilatoren
Allgemeines Zubehör
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von ELDON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Beschreibung: | Für optimalen Druckausgleich. Im Schaltschrank können Druckveränderungen entstehen wenn extreme Temperaturveränderungen stattfinden. Dann entsteht das Risiko von Staub oder Luftfeuchtigkeit im Schaltschrank. Montage: PG 29-Gewindebohrung mit Mutter. Für einen optimalen Druckausgleich empfehlen wir den Einsatz von 2 Ausgleichsstopfen an gegenüberliegenden Seiten im oberen Schrankbereich. Dichtungsgummi NBR. |
Material: | Plastik gemäß UL94 V-0. |
Betriebstemperatur: | -45 °C bis +70 °C. |
Bearbeitung nötig: | Rundloch, Durchmesser: 37 mm. |
Schutzart: | IP 55. |
Oberfläche: | Lichtgrau. |
Verpackungseinheit: | 2 Stück. |
Feature: | Plastic pressure compensation plug with waterproof membrane. |
Advantage: | In certain locations there can be wide temperature variations especially over a short period of time, which creates pressure differences from inside to outside of the enclosure. The pressure plug equalises the pressure inside and outside the enclosure allowing air and humidity to leave, while only allowing dry air to enter inside the enclosure. The plug can be easily installed and only requires a round hole to be machined. |
Benefit: | The pressure compensation plug reduces the risk of dust entering the enclosure, ensuring that a vacuum is not created. Built up humidity can leave the enclosure which reduces potential hazards with electrical components. The ease of installation reduces the labour time required and means that the modification can be done on site while the enclosure is operational, saving unnecessary downtime. |
Comment: | Highly recommended to install two plugs per enclosure for optimal pressure compensation. The plugs should be both be installed at the top of the enclosure but on opposite sides. If a higher protection degree is required, then the compensation pressure plug, EDA/EDAS, should be installed. |
Titel: | Größe: | Typ: |
---|---|---|
PVD02 PVD02 DE_PVD02.pdf | 102 Kbytes | |
Gesamtkatalog herunterladen |
