S803S-K40 2CCS863001R0557 ABB S803S-K40 High Performance Circuit Breaker Vergrößern
Die Bilder sind nur orientativ. Bitte prüfen Sie das Artikelstammdatenblatt.

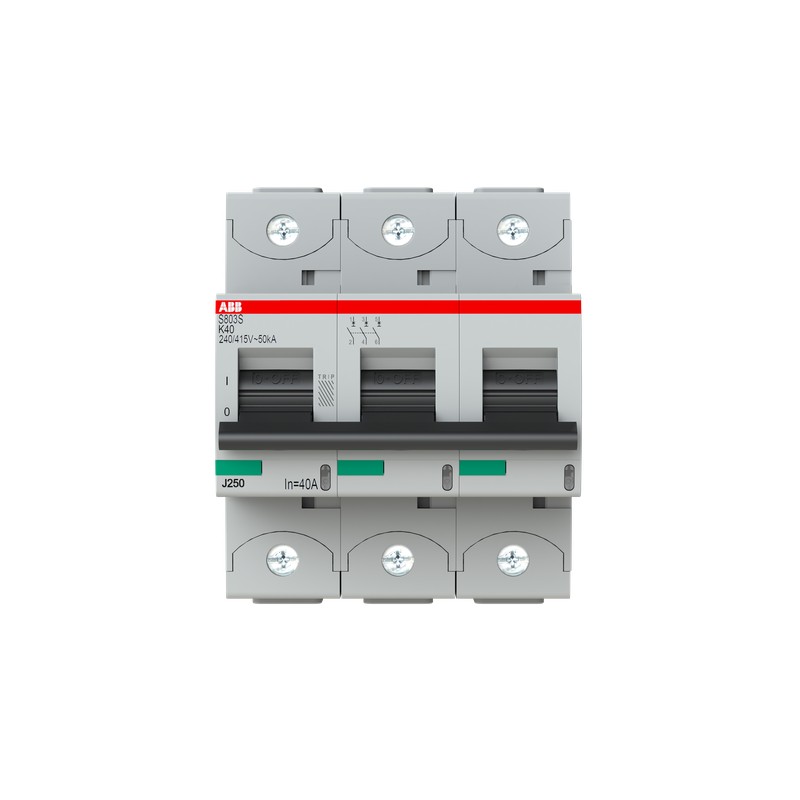

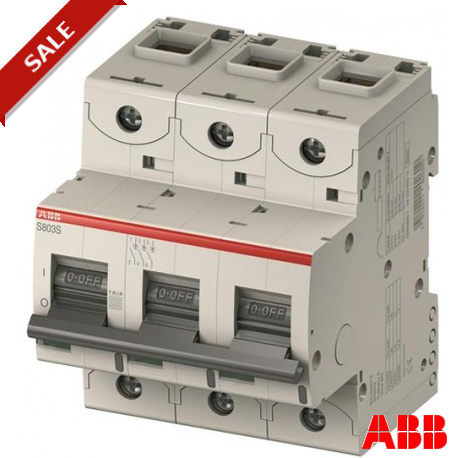

S803S-K40 2CCS863001R0557 ABB S803S-K40 High Performance Circuit Breaker

S803S-K40

2CCS863001R0557

ABB

Verfügbar

Schiff am heute

S803S-K40 High Performance Circuit Breaker

Mehr Infos


Leitungsschutzschalter Sicherungsautomat Schutzschalter

Industriell

S800S

* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von ABB

MengePreis
1+$216.49
2+$211.38
3+$208.85
4+$208.21
*Dieser Preis ist pro Einheit und ist der Nettowert (ohne Steuern, falls zutreffend).

Wie es funktioniert

Wie funktioniert das?

1 Fügen Sie die Produkte Ihrer Wahl in den Warenkorb
2 Geben Sie Ihre Kontaktdaten und senden Sie Ihre Anfrage
3 Sie werden per E-Mail mit unseren Preisvorschläge mitzuteilen
4 Beenden Sie einfach Ihre Bestellung und Sie erhalten die Produkte

Es gibt verschiedene Möglichkeiten die Zahlung abzuwickeln
- Kreditkarte
- Banküberweisung
- PayPal


Verwandte Produkte

Mehr Infos



The S803S-K40 is a 3-pole High Performance Circuit breaker with K-Characteristic, with cage terminal and a rated current of 40 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803S-K40 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803S-K40 more comfortable. Due to the fast arc extinction of S803S-K40 your application will be secured.

Ordering

  • EAN:
    7612271201746
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85362020

Dimensions

  • Product Net Width:
    81 mm
  • Product Net Depth:
    82.5 mm
  • Product Net Height:
    95 mm
  • Product Net Weight:
    0.74 kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    105 mm
  • Package Level 1 Length:
    86 mm
  • Package Level 1 Height:
    99 mm
  • Package Level 1 Gross Weight:
    0.77 kg
  • Package Level 1 EAN:
    7612271201746
  • Package Level 2 Units:
    1

Environmental

  • Ambient Air Temperature:
    Operation -25 ... +60 °C
    Storage -40 ... +70 °C
  • Resistance to Vibrations acc. to IEC 60068-2-6:
    2 - 13.2 Hz / 1mm
    13.2 - 100Hz / 0.7g
    with load 100% x Ie
  • Environmental Conditions:
    Damp Heat Cyclic acc. to IEC 60068-2-30 12+12 cycle
    Damp Heat Cyclic acc. to IEC 60068-2-30 55°C @ 90-96%
    Damp Heat Cyclic acc. to IEC 60068-2-30 25°C @ 90-100%
    Dry Heat Test B acc. to IEC 60068-2-2 16 hour @ 55 °C
    Dry Heat Test B acc. to IEC 60068-2-2 2 hour @ 70 °C
  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Technical

  • Standards:
    IEC/EN 60947-2 IEC/EN 60898-1
  • Number of Poles:
    3
  • Tripping Characteristic:
    K
  • Rated Current (In):
    40 A
  • Rated Operational Voltage:
    400/690 V AC
    375 V DC
  • Power Loss:
    at Rated Operating Conditions per Pole 4.3 W
  • Rated Insulation Voltage (Ui):
    690 V AC
  • Rated Frequency (f):
    50 / 60 Hz
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu):
    (240 / 415 V AC) 50 kA
    (254 / 440 V AC) 30 kA
    (400 / 690 V AC) 6 kA
    (125 V DC) 30 kA
  • Rated Service Short-Circuit Breaking Capacity (Ics):
    (240 / 415 V AC) 40 kA
    (254 / 440 V AC) 22.5 kA
    (400 / 690 V AC) 4 kA
    (125 V DC) 30 kA
  • Overvoltage Category:
    IV
  • Pollution Degree:
    3
  • Rated Impulse Withstand Voltage (Uimp):
    8 kV
  • Housing Material:
    Insulation group I, RAL 7035
  • Contact Position Indication:
    ON / OFF / TRIP
  • Degree of Protection:
    acc. to IEC 60529 IP20
  • Remarks:
    Connection from top and bottom
    Connecting with CU only
    IP40 in enclosure with cover
    Cage terminal with captive screw
  • Electrical Endurance:
    6000 cycle
  • Mechanical Endurance:
    6000 cycle
  • Terminal Type:
    Screw Terminals
  • Connecting Capacity:
    Stranded 1 ... 50 mm²
    Flexible 1 …70 mm²
  • Tightening Torque:
    3.5 N·m
    31 in·lb
  • Recommended Screw Driver:
    Pozidriv 2
  • Mounting on DIN Rail:
    TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
    TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • Mounting Position:
    Any

Certificates and Declarations (Document Number)

Classifications

  • E-nummer:
    2101606
  • ETIM 4:
    EC000042 - Miniature circuit breaker (MCB)
  • ETIM 5:
    EC000042 - Miniature circuit breaker (MCB)
  • Object Classification Code:
    F

Datasheet - PDF

Title:Language:Size:Type:
pdf-S803S-K40 High Performance Circuit Breaker - ABB - S803S-K40 - 2CCS863001R0557English97 Kbytespdf-S803S-K40 High Performance Circuit Breaker - ABB - S803S-K40 - 2CCS863001R0557
