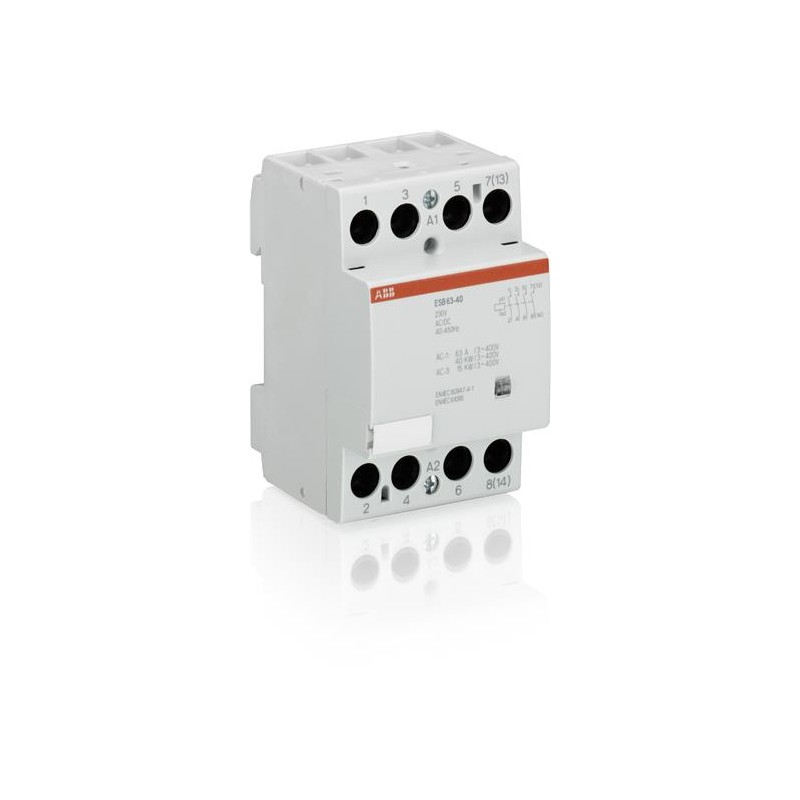

ESB63-20/24V GHE3691402R0001 ABB ESB63-20-24AC / DC Installationsschütz Vergrößern
Die Bilder sind nur orientativ. Bitte prüfen Sie das Artikelstammdatenblatt.

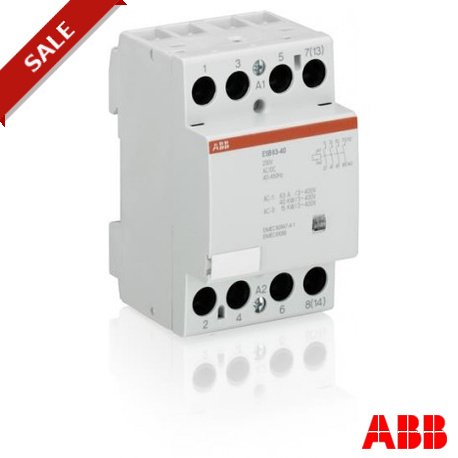

ESB63-20/24V GHE3691402R0001 ABB ESB63-20-24AC / DC Installationsschütz

ESB63-20/24V

GHE3691402R0001

ABB

Verfügbar

Schiff am heute

ESB63-20-24AC / DC Installationsschütz

Mehr Infos


Management Control Energie Analysatoren

Andere modulare Geräte

ESB - EN (DESTO)

* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von ABB

MengePreis
1+$104.06
2+$101.07
4+$98.65
6+$97.44
8+$96.97
*Dieser Preis ist pro Einheit und ist der Nettowert (ohne Steuern, falls zutreffend).

Wie es funktioniert

Wie funktioniert das?

1 Fügen Sie die Produkte Ihrer Wahl in den Warenkorb
2 Geben Sie Ihre Kontaktdaten und senden Sie Ihre Anfrage
3 Sie werden per E-Mail mit unseren Preisvorschläge mitzuteilen
4 Beenden Sie einfach Ihre Bestellung und Sie erhalten die Produkte

Es gibt verschiedene Möglichkeiten die Zahlung abzuwickeln
- Kreditkarte
- Banküberweisung
- PayPal


Verwandte Produkte

Mehr Infos



The ESB63 installation contactor is a 2 pole contactor suitable for modular switchboards. They are specially designed fitting to modular DIN rail products and for applications where customers want to use the panel design with high finger protection. Installation contactors are used in residential, commercial and industrial applications for the control of single or three-phase loads up to 63 A or switching of control signals. Further features are the noiseless and hum-free DC coil, the integrated overvoltage protection up to 5 kV and a switch position indication. Auxiliary contacts, distance pieces and sealing cover for protection against unauthorized changes are available as accessory.

Ordering

  • EAN:
    4013614291999
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080

Dimensions

  • Product Net Width:
    54 mm
  • Product Net Height:
    85 mm
  • Product Net Depth:
    65 mm
  • Product Net Weight:
    0.37 kg

Container Information

  • Package Level 1 Units:
    3 piece
  • Package Level 1 Width:
    89 mm
  • Package Level 1 Height:
    69 mm
  • Package Level 1 Length:
    165 mm
  • Package Level 1 Gross Weight:
    1.155 kg
  • Package Level 1 EAN:
    4013614421457

Environmental

  • Ambient Air Temperature:
    Operation -25 ... +55 °C
    Storage -40 ... +80 °C
  • Maximum Operating Altitude Permissible:
    2000 m
  • Resistance to Shock acc. to IEC 60068-2-27:
    11 ms Pulse 15g
  • Resistance to Vibrations acc. to IEC 60068-2-6:
    5g / 3 … 150 Hz
  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA:
    Main Circuit 480 V AC
  • Ampere Rating UL/CSA:
    21 A
  • Horsepower Rating UL/CSA:
    (220 ... 240 V AC) Single Phase 10 Hp
    (440 ... 480 V AC) Three Phase 15 Hp
  • General Use Rating UL/CSA:
    (acc. to UL 240 V) 63 A
    (acc. to UL 480 V) 63 A
  • Connecting Capacity Main Circuit UL/CSA:
    Flexible 16 ... 4 AWG
    Stranded 16 ... 4 AWG
  • Tightening Torque UL/CSA:
    Control Circuit 8 in·lb
    Main Circuit 20 in·lb
  • Connecting Capacity Control Circuit UL/CSA:
    Stranded 16 ... 10 AWG

Additional Information

  • Coil Consumption:
    Average Holding Value 50 Hz 4.2 V·A
    Average Pull-in Value 50 Hz 65 V·A
  • Coil Operating Limits:
    (acc. to IEC 60947-4-1) 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
  • Connecting Capacity-Control Circuit:
    Rigid 1/2x 1 ... 4 mm²
    Rigid 2x 2.5 mm²
  • Connecting Capacity-Main Circuit:
    Flexible with Ferrule 1x 1.5 ... 16 mm²
    Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²
    Flexible 1x 1.5 ... 16 mm²
    Rigid 1x 1.5 ... 25 mm²
    Rigid 2x 10 mm²
  • Degree of Protection:
    IP20
  • Drop-out Voltage in % of Uc:
    10 ... 75
  • Electrical Durability:
    AC-1 150000 cycle
    AC-3 240000 cycle
    AC-7a 150000 cycle
    AC-7b 240000 cycle
  • Frequency (f):
    40 ... 450 Hz
  • Fuse Type:
    Class K5 - 75 A
  • IIT Publishing Status:
    Level 0 - Information enabled
  • Maximum Electrical Switching Frequency:
    AC-1 300 cycles per hour
    AC-3 600 cycles per hour
    AC-7a 300 cycles per hour
    AC-7b 600 cycles per hour
  • Mechanical Durability:
    1000000 cycle
  • Mounting on DIN Rail:
    TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
    TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  • Mounting Position:
    Position 1 to 5
  • Number of Main Contacts NC:
    0
  • Number of Main Contacts NO:
    2
  • Number of Poles:
    2
  • Pollution Degree:
    3
  • Power Loss:
    at Rated Operating Conditions per Pole 6 W
  • Product Main Type:
    ESB63
  • Product Name:
    Installation Contactor
  • Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1:
    8 x Ie / AC-3
  • Rated Control Circuit Voltage (Uc):
    24 V
  • Rated Frequency (f):
    Control Circuit DC
    Control Circuit 50 Hz
    Control Circuit 60 Hz
    Control Circuit 400 Hz
    Main Circuit DC
    Main Circuit 50 Hz
    Main Circuit 60 Hz
  • Rated Impulse Withstand Voltage (Uimp):
    6 kV
  • Rated Insulation Voltage (Ui):
    acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 500 V
    acc. to UL/CSA 600 V
  • Rated Making Capacity AC-3 acc. to IEC 60947-4-1:
    10 x Ie / AC-3
  • Rated Operational Current AC-1 (Ie):
    (NC) 30 A
    (NO) 63 A
  • Rated Operational Current AC-3 (Ie):
    (230 V) Single Phase 30 A
    (400 V) Three Phase 30 A
  • Rated Operational Current AC-7b (Ie):
    (230 V) Single Phase 30 A
    (400 V) Three Phase 30 A
  • Rated Operational Power AC-1 (Pe):
    230 V Single Phase 14.5 kW
    400 V Three Phase 41 kW
  • Rated Operational Power AC-3 (Pe):
    (230 V) Single Phase 5 kW
    (400 V) Three Phase 15 kW
  • Rated Operational Power AC-7a (Pe):
    (230 V) Single Phase 14.5 kW
    (400 V) Three Phase 41 kW
  • Rated Operational Voltage:
    Main Circuit 220 V DC
    Main Circuit 400 V AC
  • Rated Short-time Withstand Current (Icw):
    at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 240 kA
  • Recommended Screw Driver:
    Control Circuit Pozidriv 1
    Main Circuit Pozidriv 2
  • RoHS Date:
    0456
  • Standards:
    IEC/EN 60947-1
    IEC/EN 60947-4-1
    IEC/EN 60947-5-1
    IEC/EN 61095
    UL 60947-1
    UL 60947-4-1
  • Terminal Type:
    Screw Terminals
  • Tightening Torque:
    Control Circuit 0.9 N·m
    Main Circuit 2.5 N·m
  • Wire Stripping Length:
    Control Circuit 7 mm
    Main Circuit 13 mm

Certificates and Declarations (Document Number)

Classifications

  • eClass:
    7.0 27142308
  • ETIM 4:
    EC001653 - Installation contactor for distribution board
  • ETIM 5:
    EC001653 - Installation contactor for distribution board
  • Object Classification Code:
    Q
